- Seal water, dirt, oil, gases, rodents, or other contaminants out of
conduit/duct or central
office
Protect your
investment in cable,
electronics
Deter
copper cable thieves
- Cured foam is strong, resilient and chemically
resistant
Provides
superior protection in adverse field
conditions
and where cable
movement is present
- Can hold 22 feet water-head pressure over an extended period of
time
- Will tolerate cable movement
- Foam expands and cures quickly even when water is
present
Seal ducts
quickly and neatly
- Two-part foam is mixed in nozzle as it is injected -- no mixing
required
Saves time
with no measuring
- Packages are resealable, no waste
- Cured foam is semi-permanent and can be removed
- No known effects on common cable and wire jacketing
compounds.
|
FST™
Duct Seal is a
“closed cell foam”, which is superior
to “open cell” spray canned foams. The kit contains a cartridge filled with a two-part foam base, which is mixed in
equal parts as it is pushed through a mixing nozzle. When mixed and
injected, the foam expands and hardens, keeping water, acids, greases, gases,
insects, and rodents, etc., out of the conduit. The foam has good wetting and
adhesion to metals, plastics, and concrete. A separate, reusable ratchet
application tool is used to inject the foam. |
| Polywater® FST™ Duct Seal |
 |
A properly constructed FST™ Duct
Seal example is shown at right in the clear conduit demo. Note the
placement of the "damming" strips wrapped around the cables. The
dams create the void into which the liquid FST™
foam is injected and hold the rapidly expanding foam in place while it
cures.
For additional information read the Application Instructions for FST-250 or FST-MINI, or watch the Installation Video for FST-250 or FST-MINI. |
|
The FST™ Duct Seal
example shown at right is a cross-cut duct to show FST™ closed cell foam technology at work surrounding the cable to maintain a good seal. |
 |
|
FST™Duct Sealant is available in two cartridge sizes. FST-250 is used for 2-inch (50mm) or larger conduits and comes in a multi-use single-plunger caulking tube that uses a standard high-ratio caulking tool (TOOL-250). FST-MINI is used for 1.5-inch (38mm) and smaller conduits. It comes in a dual 50 ml cartridge with 1:1 ratio. TOOL-50-11 is needed to apply FST-MINI. FST™ foam wets and adheres to metals, plastics, and concrete, and can seal ducts of different sizes, base materials, and shapes. It conforms around complex cable fill configurations. A kit contains everything required to install the duct block (application tools available separately).
|
| ORDERING
INFORMATION |
| Catalog # |
Description |
Units/CS |
Image |
| FST-250 for use in 2" (50mm) and larger duct |
| FST-250KIT1 |
1 8.5-oz two-part Foam Sealant caulking tube style (cat# FST-250)
3 Mixing nozzles
4
24" Foam damming strips (cat# FST-DAM)
1 24" Abrasive strip
1 Pair
disposable gloves
1 Positioning rod for foam dam
1 Pre-treating wipe
(cat# HP-P158ID)
1 Resealing cap
1 Instruction
sheet
TOOL-250 SOLD SEPARATELY (TOOL-250) |
1 |
 |
| FST-250KIT |
Same as FST-250KIT1 (sold 6 per case) |
6 |
|
| FST-250 |
1 8.5-oz two-part Foam Sealant caulking tube style (cat#
FST-250)
1 Mixing nozzles
1 Resealing cap |
12 |
 |
| MXR-30T-10 |
Mixing Nozzle 10-pack for FST-250 |
1 |
None |
|

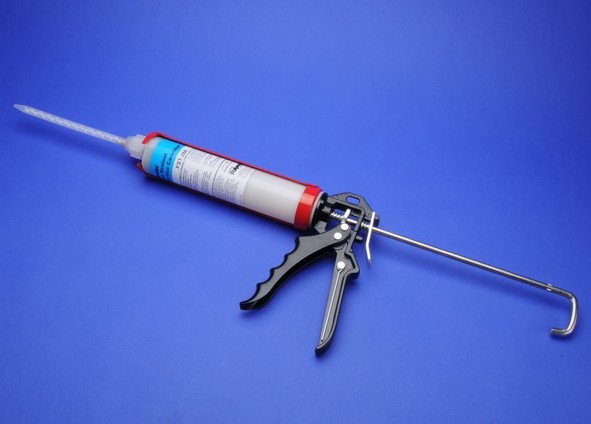

TOOL-250 |
1 High-ratio caulking gun |
1 |
 |
| FST-DAM |
1 24" Foam damming strip |
24 |
None |
| FST-MINI for use in 1.5" (38mm) and smaller duct |
| FST-MINI-1 |
50-mL cartridge – 1
Mixing Nozzles - 2
Foam Discs - 6
Pair of disposable gloves - 1
Instruction Sheet - 1 |
1 |
 |
| FST-MINI-1G |
Same as kit above
Includes TOOL-50-11 |
1 |
None |
| FST-MINI-B6 |
6 FST-MINI-1 |
1 |
None |
| FST-MINI-B6G |
6 FST-MINI-1
Includes TOOL-50-11 |
1 |
None |
| TOOL-50-11 |
Dispensing Tool for FST-MINI |
1 |
 |
| MXR-20T-10 |
Mixing Nozzle 10-Pak for FST-MINI |
1 |
 |
| Cleaners |
| HP-P158ID |
1 Conduit pre-treating cleaning
wipe |
144 |
 |
View the flyer for FST-MINI
Click here for an MSDS on this
product
Click here to Request a Quote on this product
Click here to Add Your Name To Our Mail List
FST™ lab report on Water
Sealant Comparisons
View a Demonstration
Video on FST™ (in
CHINESE)
Click here for a Spec Sheet or Español on this
product
View the flyer in PDF or Español or Português
or Chinese
Download the FST Foam Quantity Calculator or en Español
For more information on duct sealing read our Instructions For Use
For more information on health hazards read our Urethane Safety paper
View a Demonstration Video on FST™ using a 4 inch duct
